12V/24V Smart IR Hand Wave & Door Sensor Switch for Cabinet & Wardrobe Lights

Pricing

From USD 1.6/ PCS

🏷️ ⚙️Select Your Configuration ▼

Please select the required configuration before placing an order or requesting a quotation.

Control Function
VD02F-A1 : Instant On + On/Off Switch
VD02F-A3 : Instant On + Dimming Control
VD02F-B1 : Soft Start + On/Off Switch
VD02F-B3 : Soft Start + Dimming Control
VD02F-A2 : Door Sensor Instant On
VD02F-B2 : Door Sensor Soft Start

Note
Different models provide different sensing and dimming functions. Please confirm the required model before ordering.

Pricing depends on configuration and order quantity (MOQ applies). Please review the configuration options below before ordering or requesting a quote.

✅ Request a Quote

Description:

A compact infrared sensor switch designed for cabinet and wardrobe lighting systems. Supports hand wave control, door-triggered on/off, and optional dimming functions. Compatible with 12V/24V DC LED lights, ideal for furniture lighting, linear lights, and concealed installations.

Technical Specifications

Input Voltage: DC 12V / 24V
Output Voltage: DC 12V / 24V
Max Load Current: 8A
Max Load Power: 96W @12V / 192W @24V
Sensor Type: Infrared (IR)
Sensing Distance: ≤ 8 cm
Control Modes: Hand Wave / Door Control / Obstruction Dimming
Dimming Function: Optional (Model Dependent)
Switching Effect: Instant ON/OFF or Fade ON/OFF
Installation Type: Built-in / Embedded
Product Dimensions: 48 × 10 × 1.6 mm
Indicator Light: Warm White
Housing Material: PCB
Certifications: CE / FCC / RoHS
Warranty: 3 Years

Product features

Supports hand wave, door-triggered, and obstruction sensing
Optional smooth fade or instant switching
Compatible with 12V / 24V DC LED cabinet and linear lights
Ultra-slim design for concealed furniture installation
Stable 8A output for high-power LED loads
Suitable for kitchen cabinets, wardrobes, shelves, and showcases

Materials and care

PCB electronic module
Indoor use only
Avoid moisture, oil fumes, and direct water contact
Ensure correct polarity during installation

Project Notes / Ordering Notes

Sensor behavior depends on selected model (A / B series)
Dimming function available on specific versions only
Door control requires correct sensor orientation
Not compatible with AC power or RGB controllers
Custom functions available for bulk orders

View full details

Key Applications

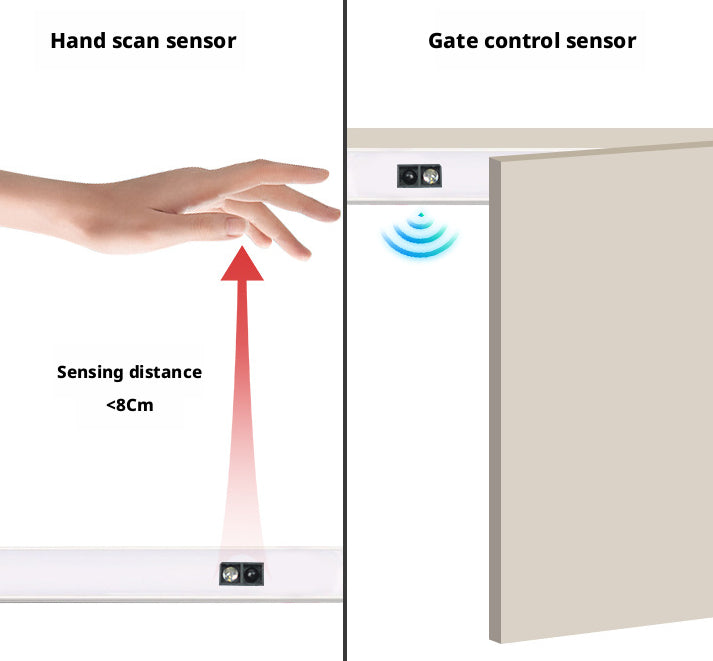

Hand Wave Sensor Control
Turn lights on or off with a simple hand wave, no physical contact required.
Door Triggered ON/OFF
Automatically turns on when the cabinet door opens and off when closed.
Ultra-Slim Embedded Module
Compact 48mm slim design fits perfectly inside aluminum profiles and furniture slots.
Multiple Control Logic Options
Supports instant or fade switching and optional dimming via obstruction sensing.
