LED Mirror Touch Dimmer Switch 24V 5A Dual Color Bathroom Sensor Switch

Pricing

From USD 1.6 / PCS

🏷️ ⚙️Select Your Configuration ▼

Please select the required configuration before placing an order or requesting a quotation.

Lighting Function
• Single Color — ON/OFF
• Single Color — ON/OFF + Stepless Dimming
• Single Color — 3-Level Dimming
• Dual Color — 3-Level CCT + Long-Press Dimming

Cable Type
• SM Cable
• DC Cable
• Bare Wire

Model Series
• Smart Mirror Switch 1
• Smart Mirror Switch 2
• Smart Mirror Switch 3
• Smart Mirror Switch 4
• Smart Mirror Switch 5
• Smart Mirror Switch 6
• Smart Mirror Switch 7

Note
Please confirm the required lighting function and cable type before placing an order or requesting a quote.

Pricing depends on configuration and order quantity (MOQ applies). Please review the configuration options below before ordering or requesting a quote.

✅ Request a Quote

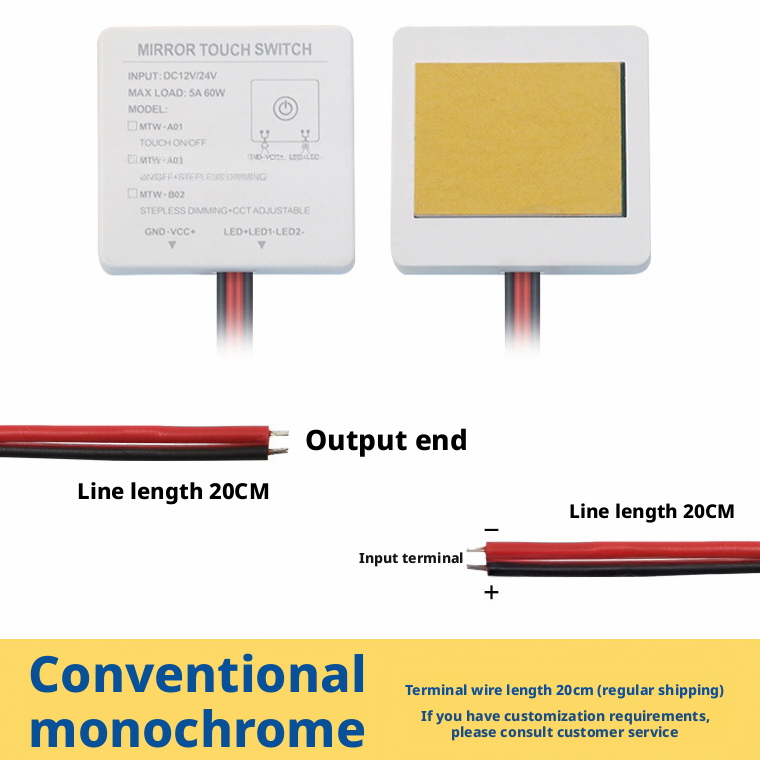

This 24V 5A Square Touch Dimmer Switch is designed for LED mirror lighting in bathrooms. Featuring a single key for dual-color operation, it allows precise dimming control for your mirror lights with a modern touch-sensitive interface. Ideal for high-end bathroom lighting setups, it supports seamless on/off control, with a built-in touch sensor for easy operation.

Technical Specifications

Model: MTW-A01
Input Voltage: DC 12V / 24V
Max Load: 5A, 60W
Dimming: Stepless Dimming, CCT Adjustable
Dimensions: 50mm x 49mm x 10mm
Indicator Light: White (off); Blue (on)
Mounting Surface: Supports Glass, Ceramic
Warranty: 2 Years

Product features

Dual-color Touch Operation: Seamlessly adjust the color temperature of the LED lights from warm to cool light.
High Load Capacity: Handles up to 5A for robust performance in larger lighting setups.
Stepless Dimming: Provides smooth dimming with no flicker, offering full control over the lighting environment.
Durable Build: Designed for long-lasting use, with support for glass and ceramic mounting surfaces.
Easy Installation: Quick wiring and simple connection for user-friendly setup in various lighting applications.

Materials and care

Material: High-quality plastic casing for durability.
Care: Clean with a soft, dry cloth. Avoid using harsh chemicals to ensure long-term functionality and aesthetics.

Project Notes / Ordering Notes

Installation: Suitable for installation with standard 12V or 24V LED systems.
Customization: Custom cable lengths available upon request; please contact customer service for customizations.
Use: Ideal for use in bathrooms with mirror lighting but can be adapted for other LED applications.

View full details

Key Applications

Touch Control for LED Mirror
Single-key touch control with stepless dimming and dual-color adjustment. Designed for smart bathroom mirrors and modern LED lighting systems.
Multiple Wiring Options
Available with standard wire ends, SM connectors, or DC plug options for single-color and dual-color LED lighting projects.
Compact Size & Power Rating
Compact 50×49×10 mm housing supports DC 12V/24V input with up to 5A load, ideal for concealed mirror installations.
Mirror Lighting Application
Designed for LED mirror lighting systems, compatible with LED strips and power supplies for bathroom and vanity applications.
