IR Motion Sensor Switch for LED Cabinet Light DC 3V–24V

IR Motion Sensor Switch for LED Cabinet Light DC 3V–24V

Pricing

From USD 1.1 / meter

🏷️ ⚙️Select Your Configuration ▼

Please select the required model before placing an order or requesting a quotation.

**Available Models**

PD01: PIR Motion Sensor – Auto On / 30s Auto Off (2m detection)

VD01Y: Hand Wave Sensor – Wave to Turn On, Hold to Dim (3–8cm)

TD01: Capacitive Touch Sensor – Touch On / Long Press Dimming (3–6mm)

VD01F: Hand Wave Sensor – Wave On / Block Dimming (3–8cm)

VD09S: Hand Wave Sensor – Wave On / Block Dimming (High Power)

PD02: PIR Motion Sensor Module – Adjustable Version

PD02T: PIR Motion Sensor Module – Touch Version

PD03: PIR Motion Sensor – 8A High Power Version

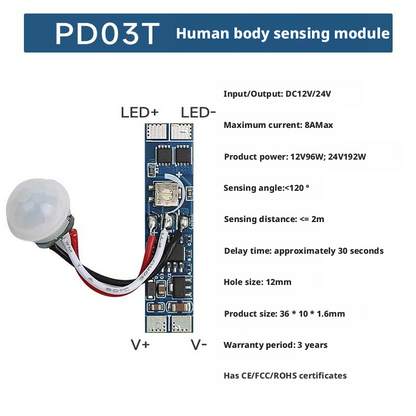

PD03T: PIR Motion Sensor – 8A Touch Version

TD02: Capacitive Touch Sensor – 8A Version

TD02M: Capacitive Touch Sensor Module – 8A Version

TD03M: Capacitive Touch Sensor Module – Advanced Version

TD04: Infrared Proximity Sensor – 8A Version

TD01-D: Capacitive Touch Sensor – Dimmer Version

VD09: Hand Wave Sensor – 8A Version

VD02F: Hand Wave Sensor – Integrated Version

VD03F: Hand Wave Sensor – Enhanced Version

VD04: Hand Wave Sensor – Advanced Version

VD09D: Hand Wave Sensor – Dual Function Version

LD02: Sensor Controller Module

HV-VD100: High Voltage Sensor Switch – AC110-220V

PTD: Multi-Function Sensor Controller

Pricing depends on configuration and order quantity (MOQ applies). Please review the configuration options below before ordering or requesting a quote.

✅ Request a Quote

This IR motion sensor switch module is engineered for LED cabinet and furniture lighting systems.
It supports multiple sensing technologies including PIR motion sensing, hand sweep sensing, touch control, infrared proximity sensing, and microwave radar detection.

The light automatically turns on when motion or hand movement is detected and turns off after a preset delay when no activity is detected.
Selected models support dimming, fade-in / fade-out effects, brightness memory, and power-off memory.

With wide voltage compatibility and compact PCB design, this sensor switch is ideal for modern smart lighting projects in cabinets and furniture.

Technical Specifications

  • Input / Output Voltage: DC 5V / 12V / 24V (model dependent)
  • Max Load / Current: up to 1A–8A (model dependent)
  • Supported Loads: LED strips, rigid bars, cabinet lights (constant voltage)
  • Detection Methods (by model): IR proximity / PIR motion / touch / hand sweep / microwave radar
  • Detection Distance / Angle: varies by model (see Selection Table in images)
  • Output Mode: on/off switching; optional dimming & fade-in/fade-out (selected models)
  • PCB Size: multiple sizes available (see Selection Table)
  • Operating Temperature: -20°C to 60°C (typical)
  • Certifications: CE / FCC / RoHS (selected models)
  • Warranty: 1–3 years (model dependent)

Product features

  • Multi-sensing options for cabinet & furniture lighting projects
  • Fast response & stable performance for daily use scenarios
  • Wide voltage compatibility (DC 5V/12V/24V options)
  • Compact PCB design for easy integration into aluminum profiles and cabinets
  • Optional functions (selected models): dimming, gradual on/off, brightness memory, power-off memory
  • Customization support: PCB size, sensing distance, working logic, connectors, labeling

Materials and care

  • PCB: FR-4 / electronic components (industrial grade)
  • Installation: mount inside cabinet/aluminum channel; keep sensing area unobstructed
  • Wiring: confirm polarity (V+ / V-) and input voltage before powering on
  • Heat & load: do not exceed max current/power rating; ensure proper heat dissipation for LED loads
  • Environment: avoid water, oil, and high humidity (unless using protected enclosure)
  • ESD caution: handle boards with anti-static protection during assembly

Project Notes / Ordering Notes

Before ordering, please confirm the following:

  1. Input voltage: DC 5V / 12V / 24V
  2. Sensing type: IR proximity / PIR motion / touch / hand sweep / radar
  3. Load requirement: LED power (W) and max current (A)
  4. Sensing distance / angle: required detection range
  5. PCB size limitation: available space inside cabinet/profile
  6. Working logic:
    On when detected / Off after delay
    Door mode (open on / close off)
    Gradual on/off (fade)
    Dimming required or not
  7. Special functions (optional): 1) Delay time ~30s (default on some models; customizable) 2）Brightness memory / Power-off memory
  8. Connectors & wiring: bare pads / JST / custom leads
  9. Order quantity & target lead time

For project pricing: click “Request a Project Quote” and send your voltage + LED load + sensing type + quantity.

View full details

Key Applications

  • Auto Motion Cabinet Lighting

    Hands-free lighting for wardrobes and cabinets. Light turns on automatically when you approach.

  • Smart Shelf & Display Lighting

    Built-in IR sensor enables automatic on/off for shelves and display cabinets.

  • Hands-Free Kitchen Lighting

    Wave or motion detection keeps lighting clean, convenient, and safe in kitchens.

  • IR Motion Sensor Module

    Supports DC 3–24V & AC 110–220V. Custom wiring and OEM options available.
