Hand Wave Sensor Switch for LED Cabinet Light 5–24V Infrared Dimmer

Pricing

From USD 1.99/ PCS

🏷️ ⚙️Select Your Configuration ▼

Please select the required configuration before placing an order or requesting a quotation.

Sensor Function
• Hand Wave Dimming
• Door Control Switch

Housing Color
• White
• Black

Cable Type
• DC Cable
• Dupont Cable
• Integrated Control Cable
• SM Cable
• Bare Wire

Product Type
• Infrared Sensor Switch for LED Cabinet Lighting

Note
Please confirm the required sensor function, housing color, and cable type before placing an order or requesting a quote.

Pricing depends on configuration and order quantity (MOQ applies). Please review the configuration options below before ordering or requesting a quote.

✅ Request a Quote

This DC 5–24V infrared hand wave sensor switch is designed for LED cabinet, wardrobe, and furniture lighting applications.
Users can turn lights ON or OFF with a simple hand wave, or adjust brightness by holding or blocking the sensor area.

With a compact body size and multiple wiring options, it integrates easily into modern cabinetry, shelving, and under-cabinet lighting systems.
It supports up to 5A current and is compatible with most low-voltage single-color LED strips and LED fixtures.

Technical Specifications

Working Voltage: 5V-24V
Max Current: 5A
Power Rating: 25W-5V, 60W-12V, 120W-24V
Detection Mode: Hand scan / door control
Product Dimensions: Main Unit: 37 × 16 mm, Base: 3114.518.5mm
Response Distance: 0-8cm

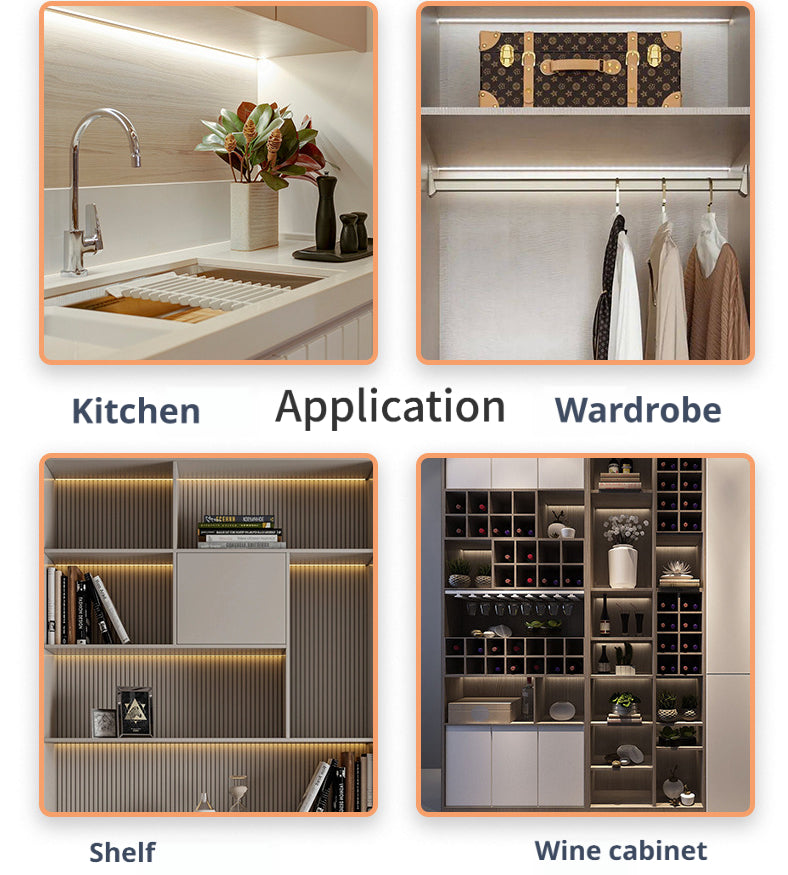

Application Areas: Kitchen, wardrobe, LED lighting
Product Certification: CE
IP Rating: IP

Product features

Hands-free ON/OFF control via hand wave sensor
Brightness adjustment by blocking or holding hand near sensor
Wide DC voltage input: 5–24V
Compact size for hidden cabinet installation
Supports up to 5A current for stable LED control
Multiple wiring options available
Ideal for modern furniture and cabinet lighting systems

Materials and care

Housing Material: ABS plastic
Sensor Window: Infrared optical module
Installation Environment: Indoor use only
Avoid direct water exposure
Ensure correct polarity during wiring

Project Notes / Ordering Notes

This product is designed for single-color LED lighting only
Power supply is not included

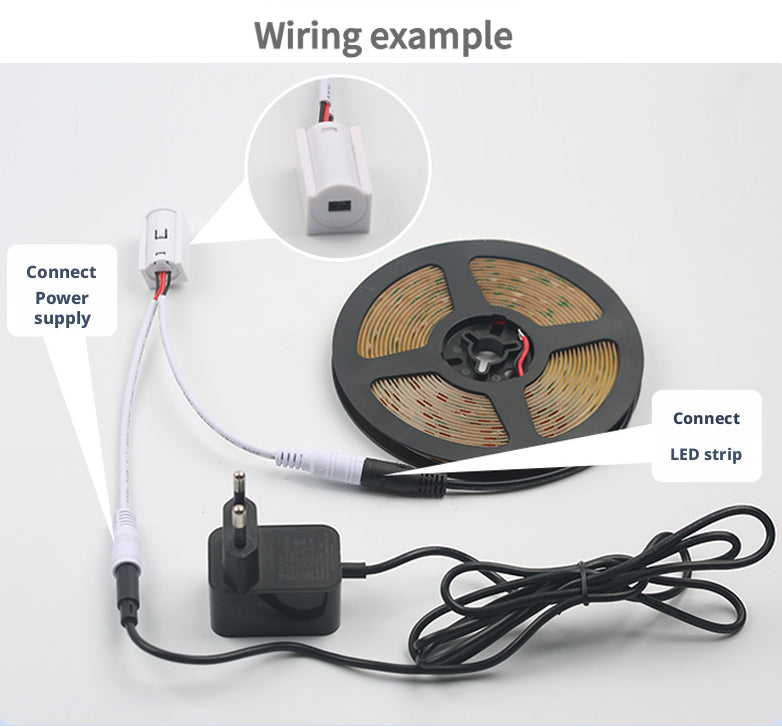

Multiple cable types are available: SM connector, DC connector, bare wire, centralized control cable
Cable length customization available upon request
Please confirm voltage, wiring type, and control mode before ordering

View full details

Key Applications

Hands-Free Smart Control
Turn lights ON or OFF with a simple hand wave. No physical contact required, ideal for clean and modern spaces.
Adjustable Brightness
Block or hold your hand near the sensor to smoothly adjust light brightness from low to high.
Compact & Easy Installation
Mini-sized sensor body with mounting bracket, designed for hidden installation inside cabinets and furniture.
Multiple Wiring Options
Supports SM connector, DC connector, bare wire, and centralized wiring solutions for flexible projects.
