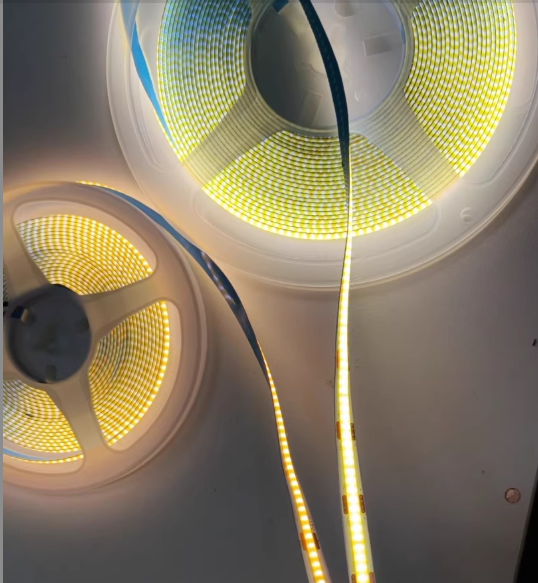

COB LED Strip Light 24V High CRI 95 Dotless Linear Lighting

Pricing

From USD 0.8 / meter

🏷️ ⚙️Select Your Configuration ▼

Please select your required configuration before placing an order or requesting a quotation.

**Light Color**

3000K Warm White
4000K Neutral White
6000K Cool White
Dual White (CCT Adjustable)
Blue / Ice Blue
Red / Orange / Golden Yellow
Green / Pink / Purple

**PCB Width**

3 mm
5 mm
8 mm
10 mm

**Input Voltage**

DC 5V
DC 12V
DC 24V

**LED Density / Performance**

320 LEDs/m – Standard Brightness
400 LEDs/m – High Density
480 LEDs/m – High Brightness
528 LEDs/m – Ultra High Density

Note
Please order in multiples of **5 meters or 10 meters** depending on the selected model. Confirm the required light color, PCB width, voltage and LED density before ordering.

Pricing depends on configuration and order quantity (MOQ applies). Please review the configuration options below before ordering or requesting a quote.

✅ Request a Quote

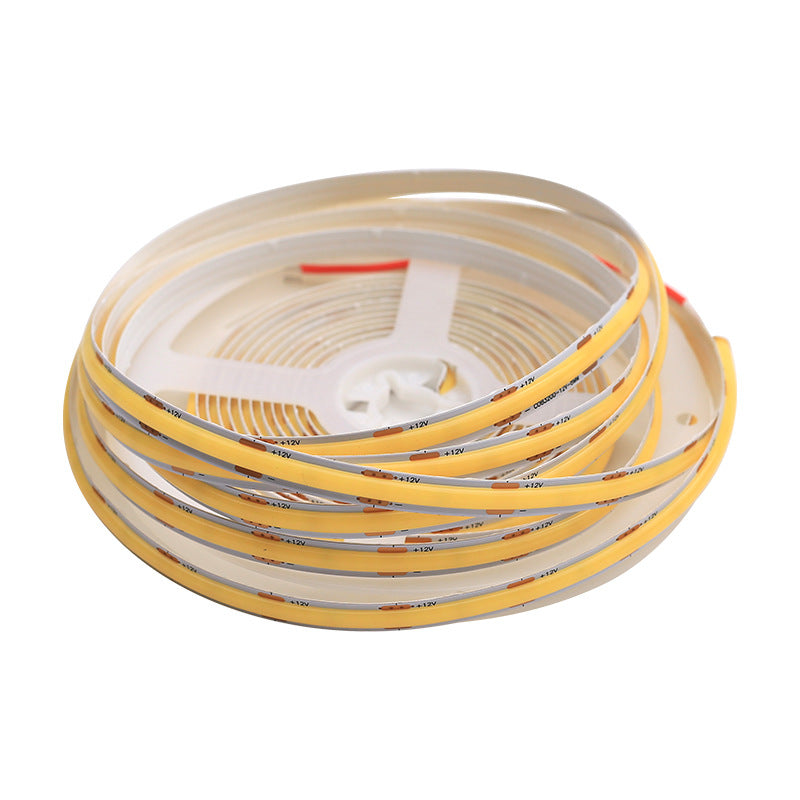

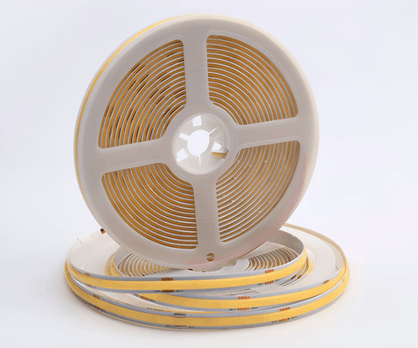

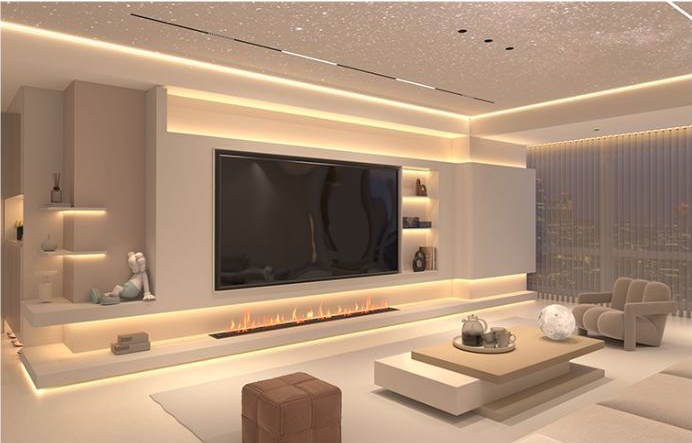

Engineered for architectural and commercial linear lighting applications.

This COB LED strip delivers uniform, dotless illumination with high CRI ≥95,
ideal for professional low-voltage linear lighting projects requiring
consistent light quality and flexible installation.

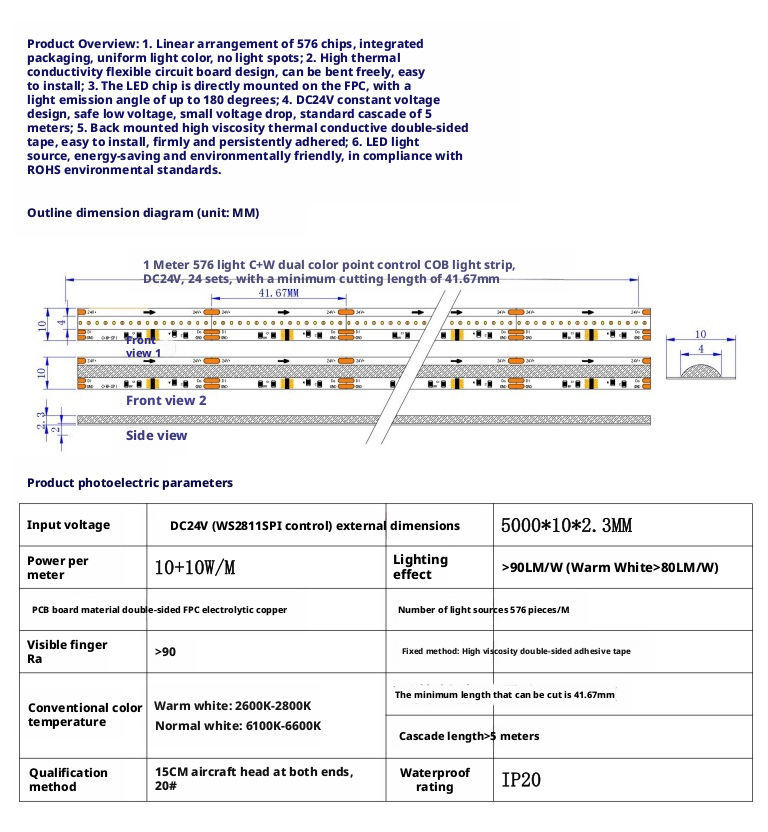

Technical Specifications

Electrical

Input Voltage: DC 12V (standard) (Optional: DC 24V / 5V, customizable)
Power Consumption: 12 W/m(depending on configuration)
Control Type: Constant Voltage

Optical

Color Temperature (CCT):
3000K / 4000K / 6000K
Tunable White (Dual White)
RGB / RGBW (optional)
CRI: ≥95 (≥90 available for selected models)
Luminous Efficacy: High luminous efficiency (typical)

Mechanical

PCB Width: 3 mm / 5 mm / 8 mm / 10 mm
LED Density: 320 / 400 / 480 / 528 LEDs/m (model dependent)
Cutting Length: Min. 41.67 mm (varies by specification)
PCB Material: Double-layer Flexible PCB (FPCB)

Protection

IP Rating: IP20 (Optional: IP65 / IP67 upon customization with protective coating or silicone sleeve)

Installation

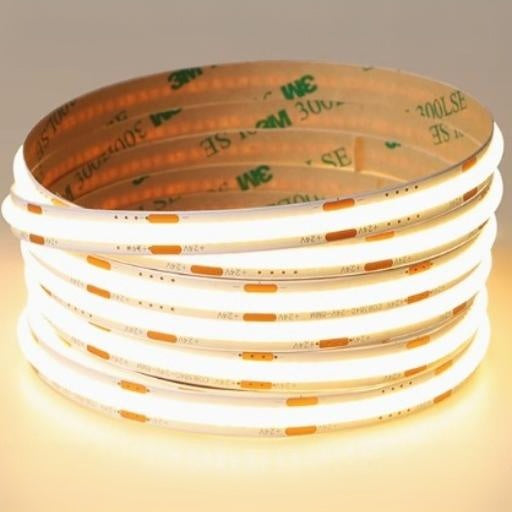

Mounting Method: High-adhesion 3M tape
Connection: 2-pin wire
(Wire length and connector type customizable)

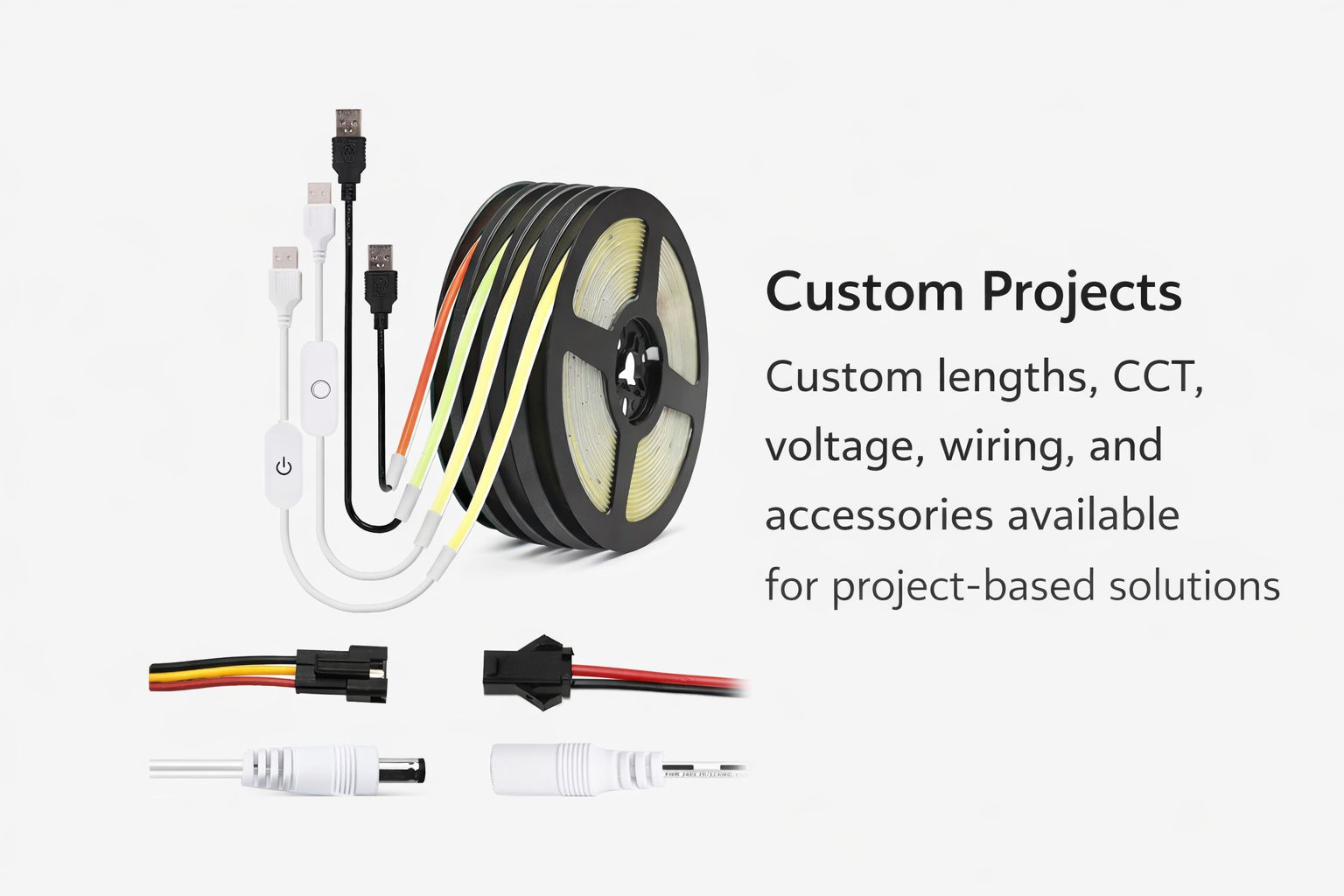

Customization & Ordering

Customization Options:
Length / Voltage / CCT / PCB width / LED density / IP rating
MOQ: Project-based

Please contact us for detailed quotation and lead time.

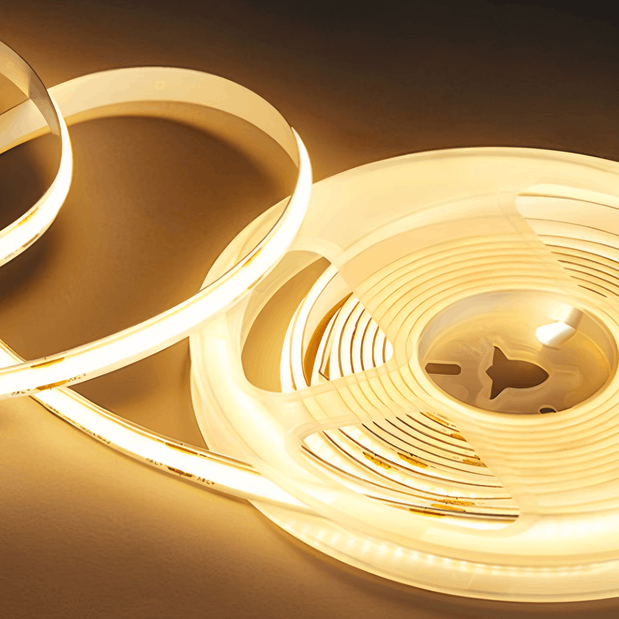

Product features

• Dotless COB LED design for perfectly uniform linear illumination
• High CRI 95 for accurate color rendering in professional environments
• Soft, continuous light output with no visible LED points
• Flexible and cuttable design for custom installations
• Stable brightness with low voltage DC operation

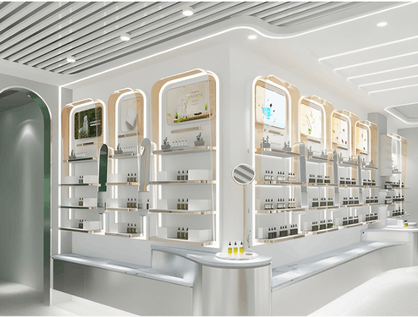

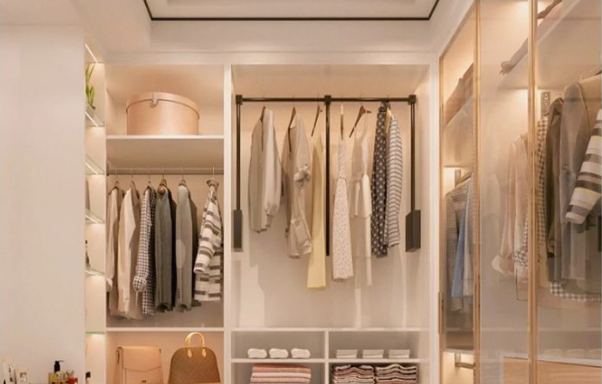

• Ideal for architectural, commercial, and display lighting applications

Materials and care

• High-density COB LED chip on flexible FPC substrate
• Silicone / phosphor coating for uniform light diffusion
• Aluminum channel recommended for optimal heat dissipation
• Indoor use recommended unless specified as IP-rated
• Clean with dry cloth only; avoid chemical solvents
• Ensure proper power supply and thermal management during installation

Project Notes / Ordering Notes

• Available in multiple color temperatures and power options
• Custom length cutting supported for project-based orders
• Compatible with standard LED controllers and dimming systems
• Power supply and aluminum profiles sold separately unless specified
• For bulk orders, OEM/ODM customization is available
• Please contact us for project quotations, wiring diagrams, or technical support
